The purpose of this guide is to instruct, with access to a few common tools, how to make a Project North Star reference AR headset. It's aimed to be accessible and inexpensive to build, using as many off-the-shelf components and 3D-printed parts as possible. For now, several key components are custom-made (e.g. the reflectors, display driver board, and our custom ultra-wide hand tracking module), but we know that together we can find make some work-arounds and alternatives.
Although not a complete AR solution, Project North Star points to a future where the physical and virtual worlds blend together into a single magical experience. With it we hope to gather like-minded people and build that future together.
The headset is made up of three modular assemblies: the optics bracket, the headgear with hinges, and the halo (which contains all the electronics). This configuration has been very useful as we iterated on different parts. The parts are 3D printed using consumer grade 3D printers and materials, with a couple parts from McMaster-Carr. The goal is to have an easily reproduced AR headset that anyone can put together.
Ignoring the reflectors, you'll need to 3D print roughly 20+ hours of parts and cut, drill and tap aluminum bar stock. Nothing expensive or major requiring a machine shop, but a few tools are expected. Read below for the list.
3D printer and software: MakerGear M2, Simplify3D, print profiles: Rsilver's M2 Simplify 3D optimized profiles, Thingiverse
Filament: eSun PLA+, Amazon
T6 Torx driver for thin-plastic screws Torx T6 driver, McMaster
Phillips driver for M2.5 screws Screwdriver Phillips #1 size, Amazon
M2.5 Screw thread tap *: M2.5 x 0.45 mm Thread Tap, McMaster
Hot glue gun (on low setting < 40W), for reflectors Hot glue gun, Amazon
Latex or Nitrile gloves (minimize fingerprints on optical components) Sterile gloves, Amazon
Leap Motion Controller
3.5-inch 120Hz LCDs

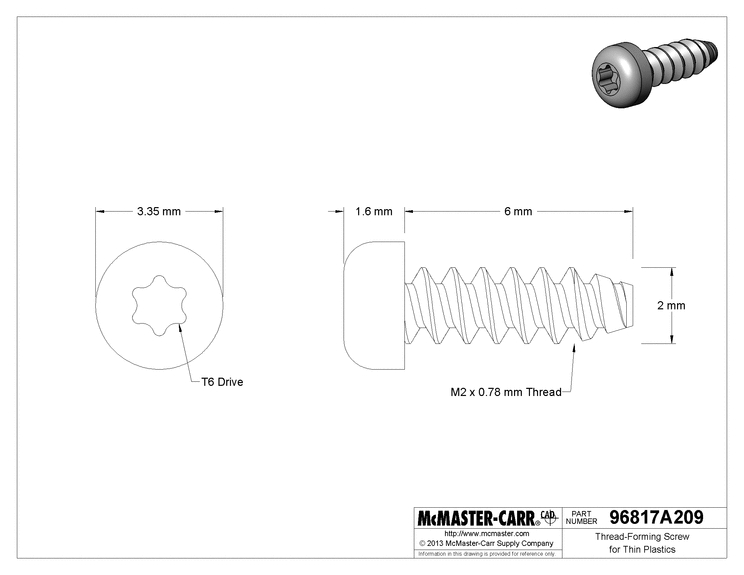

Self-tapping screws for plastic

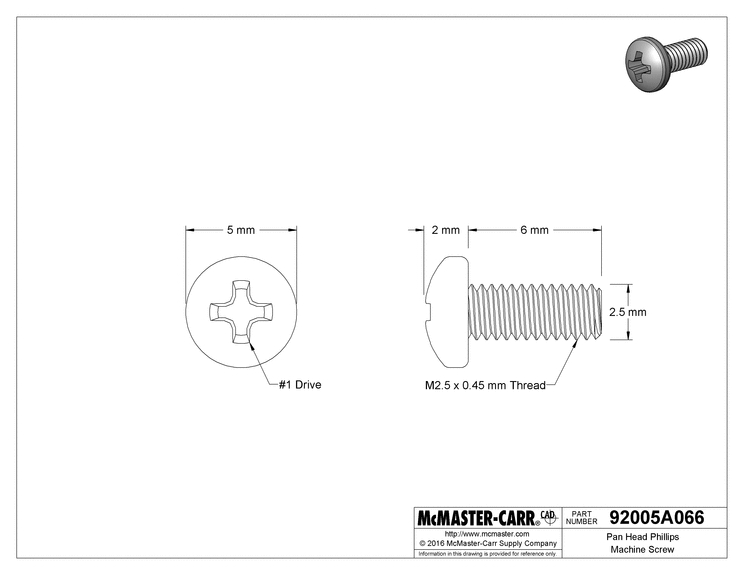

Machine screws M2.5 x 6mm

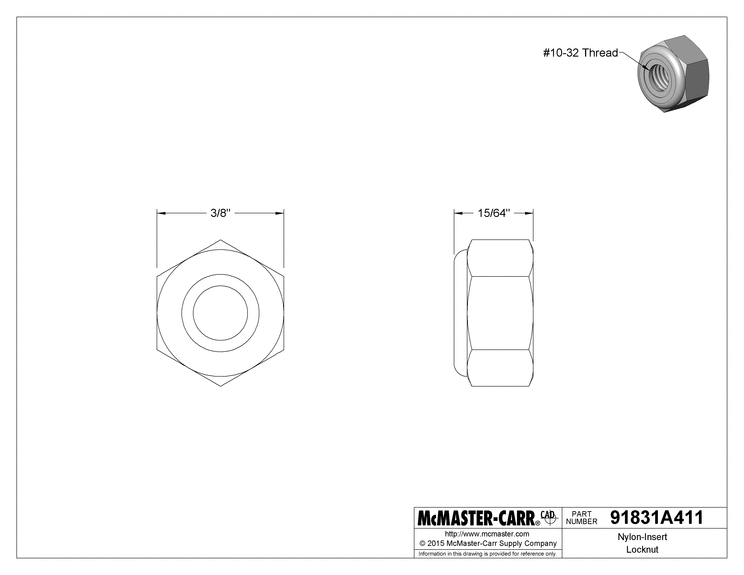

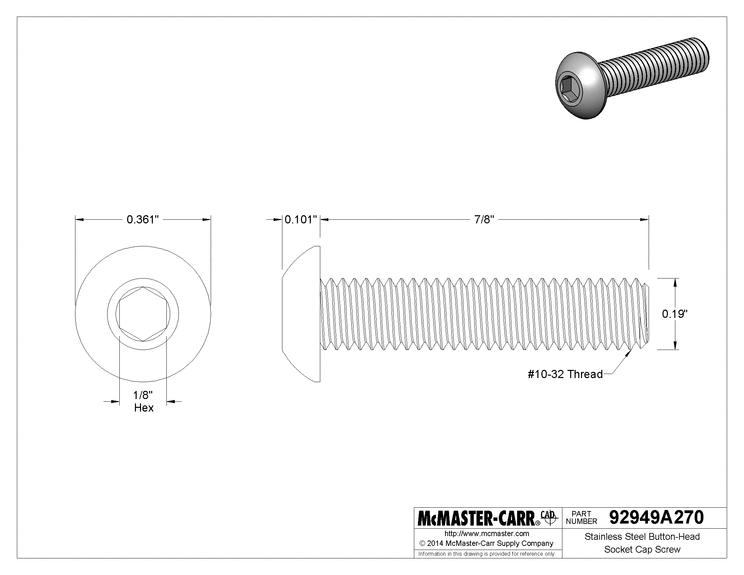

Hinge fasteners, #10-32
1 pk ea.
Al. bar stock 10x3mm
12-in [300 mm]
3D printed parts
Depending on which Leap Motion hand tracking module you use, it will determine which sets of 3D prints you'll need. Check the 3D printing section for more details.
Retail Leap Motion Controller - Amazon -or- Custom ultra-wide tracking module
See the Electronics folder in the main repo for display driver schematics and firmware.

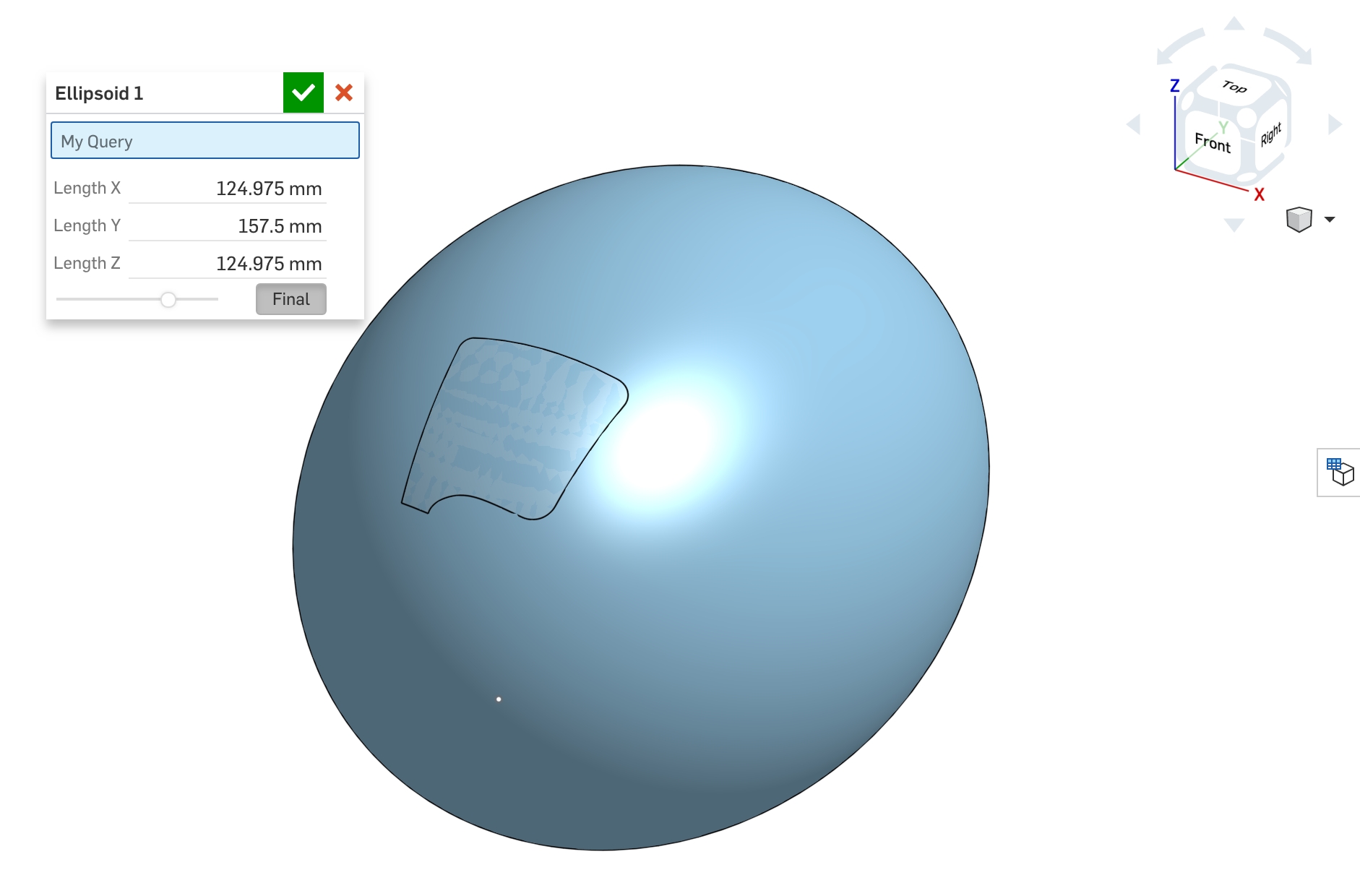

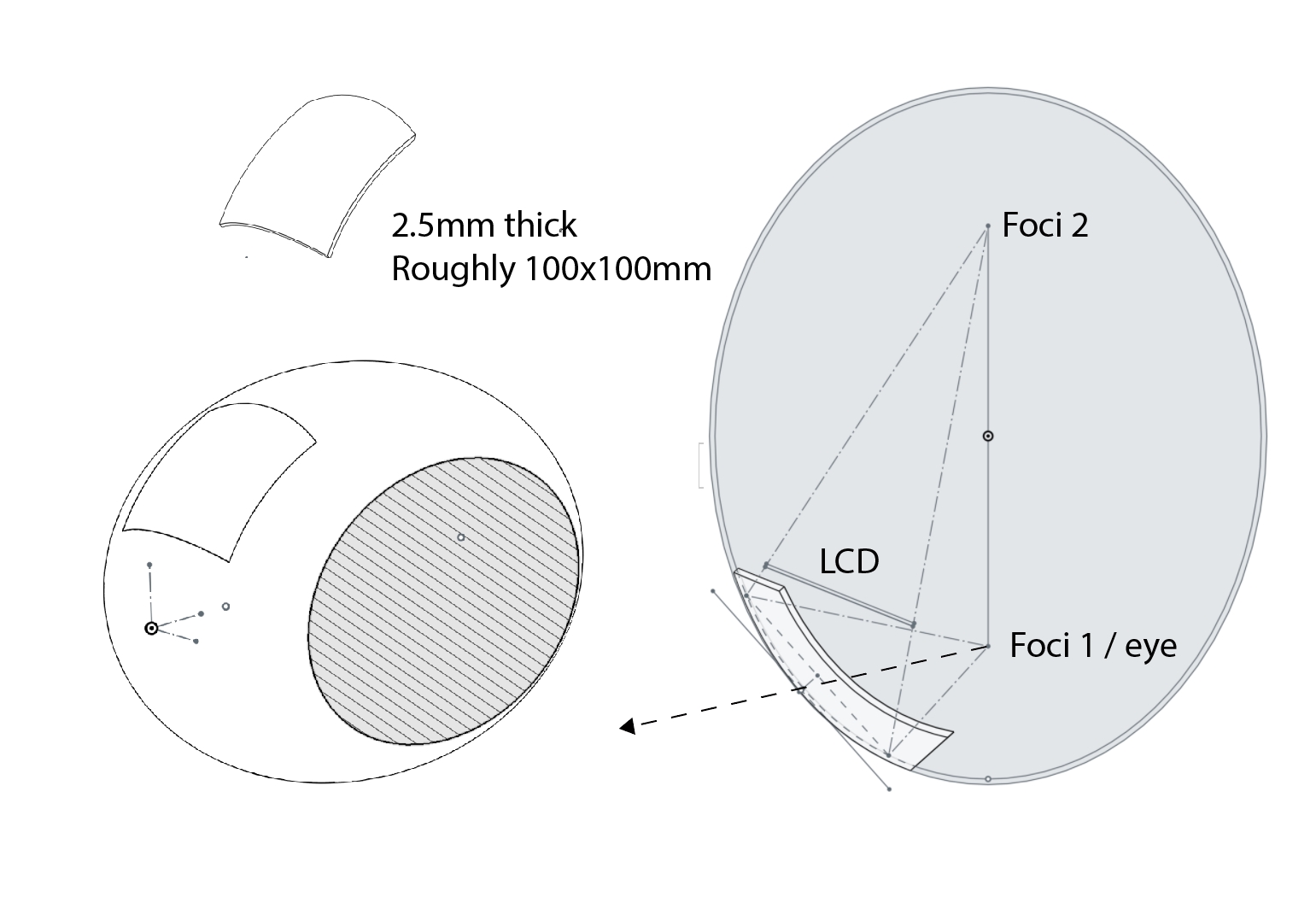

What may seem intimidating at first is conceptually very simple. One property of elipsoids is that all the light emitted from one focus reflects off its surface and focuses it to the second focus! Amazing. Therefore, to figure out the section of elipsoid needed in our AR application, we traced a ray backwards from the second focus, through a cellphone-sized.

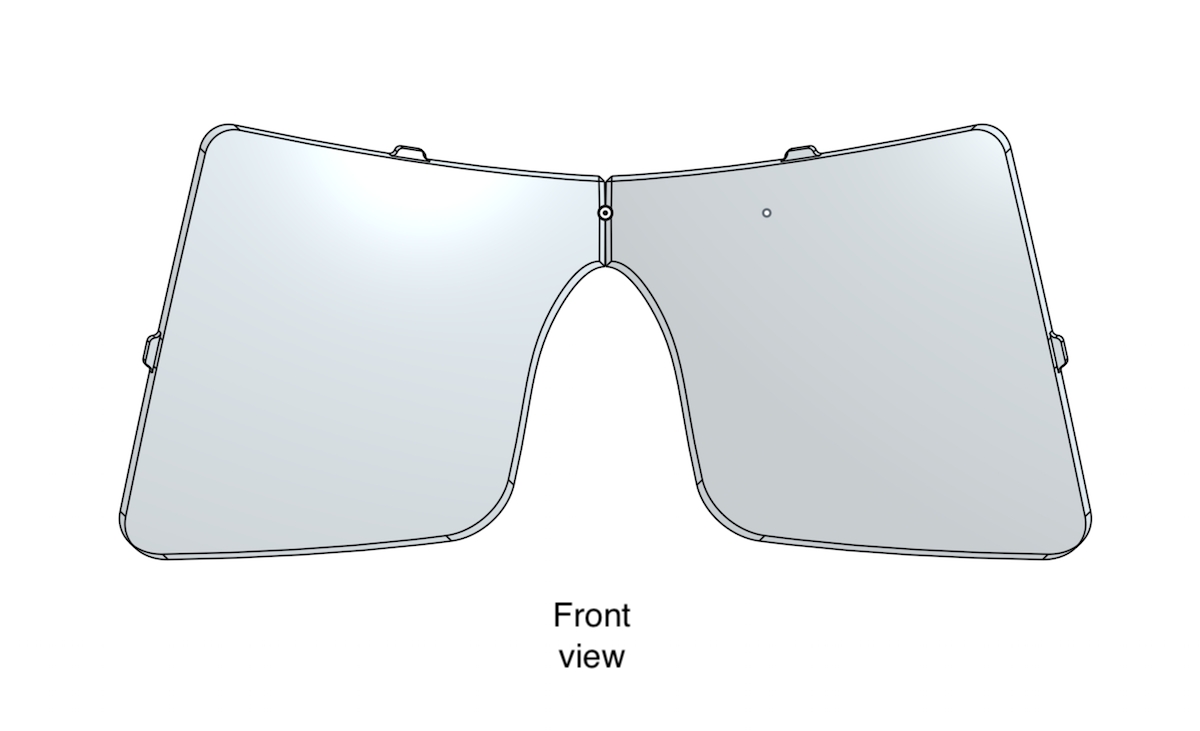

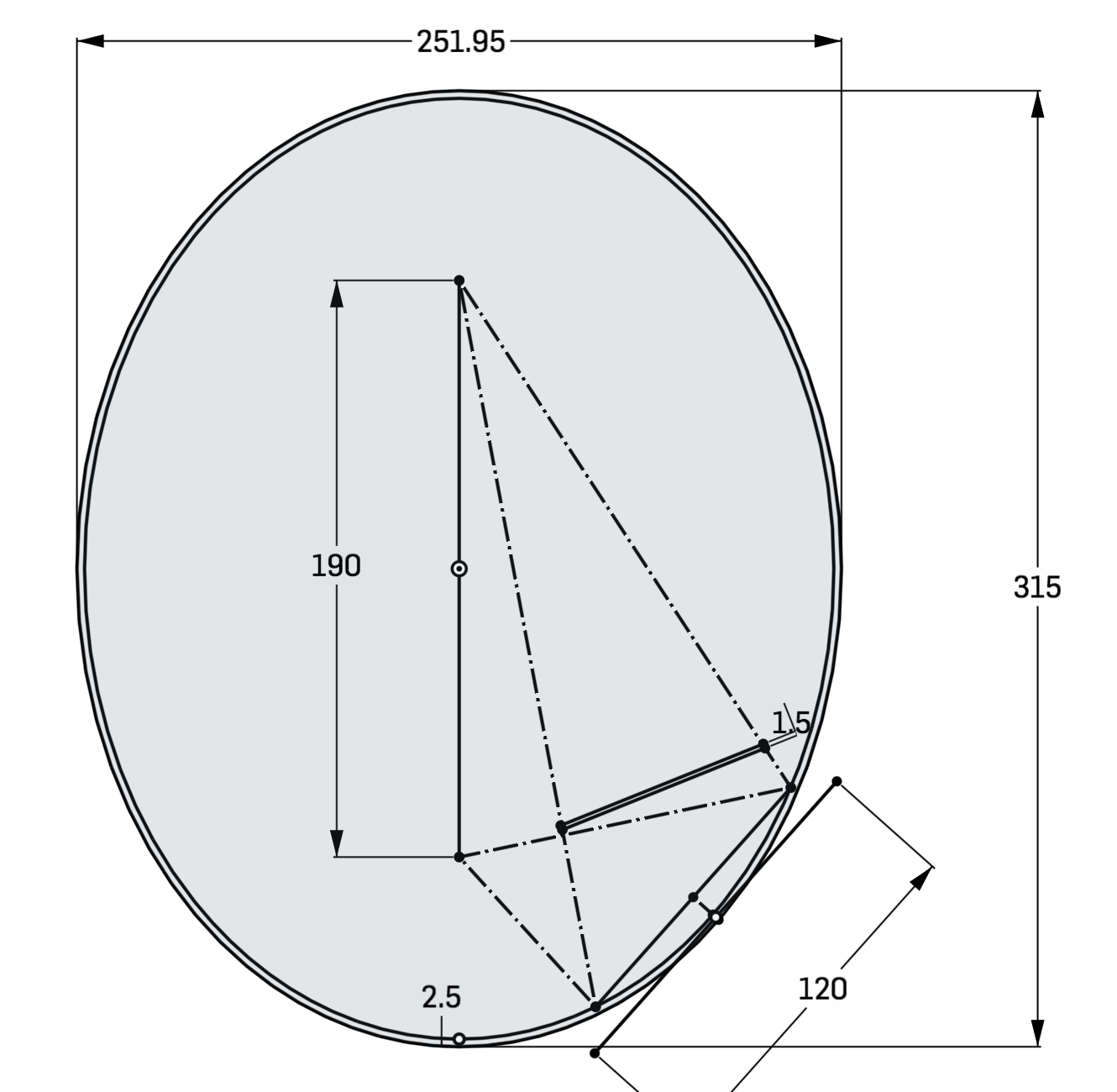

The resultant elipsoid is defined by the following dimensions, chosen to allow a range of 3-to-5-inch LCD panels to be placed near the eye. The perimeter of the elipsoid section was decided on empirically by minimizing distortion with a larger prototype, then cropping to the reflected image. This large reflector was roughly 120x120mm, and the final ended up being around 75x75mm.
The reflectors are diamond-turned and milled from PMMA (a.k.a. acrylic). The outside surface needs an anti-reflective coating to prevent a secondary reflection from degrading the image. Indoors and subjectively, 50-50% (transmissive-reflective) anti-reflective coating provided the best results for us.

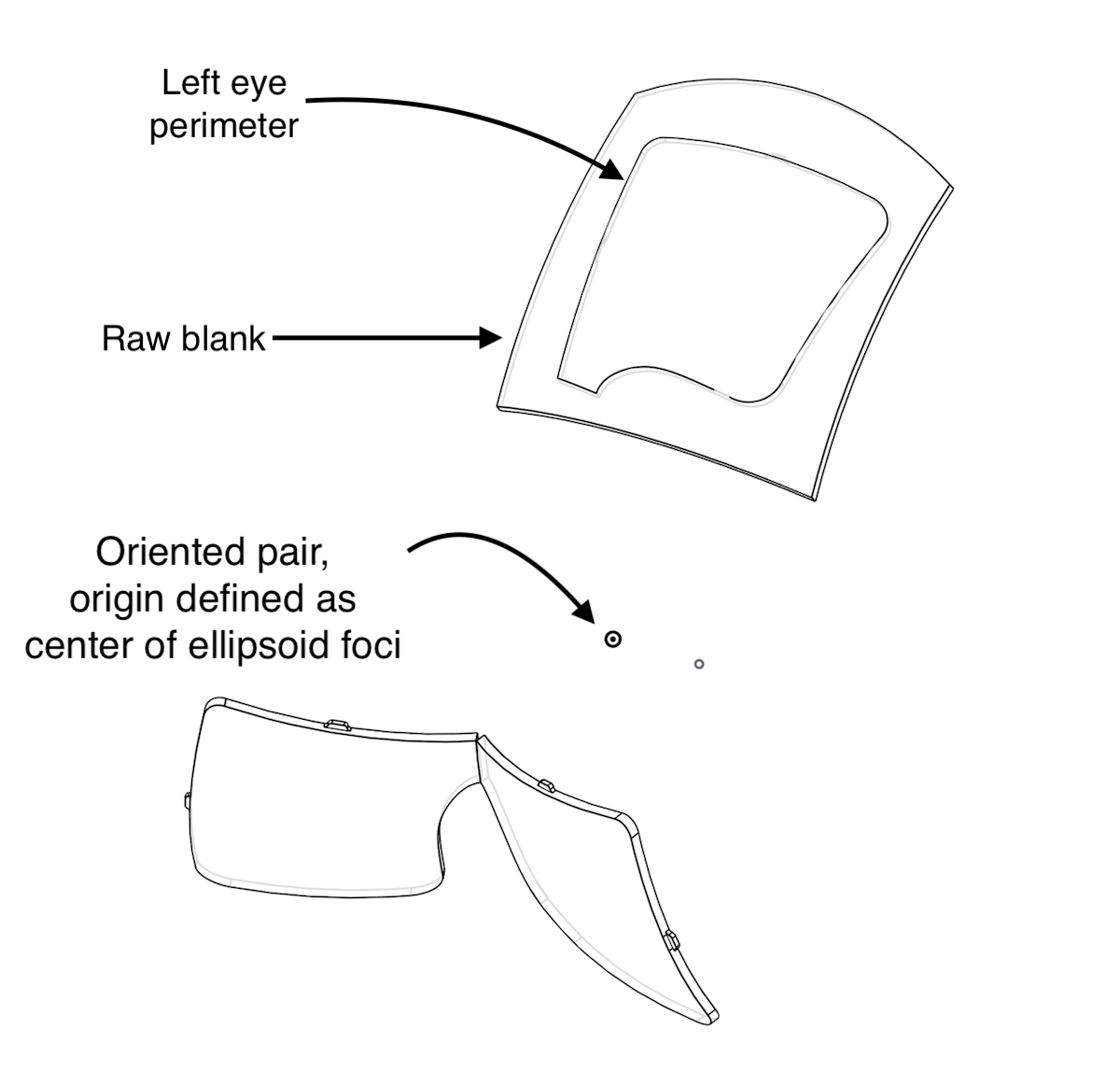

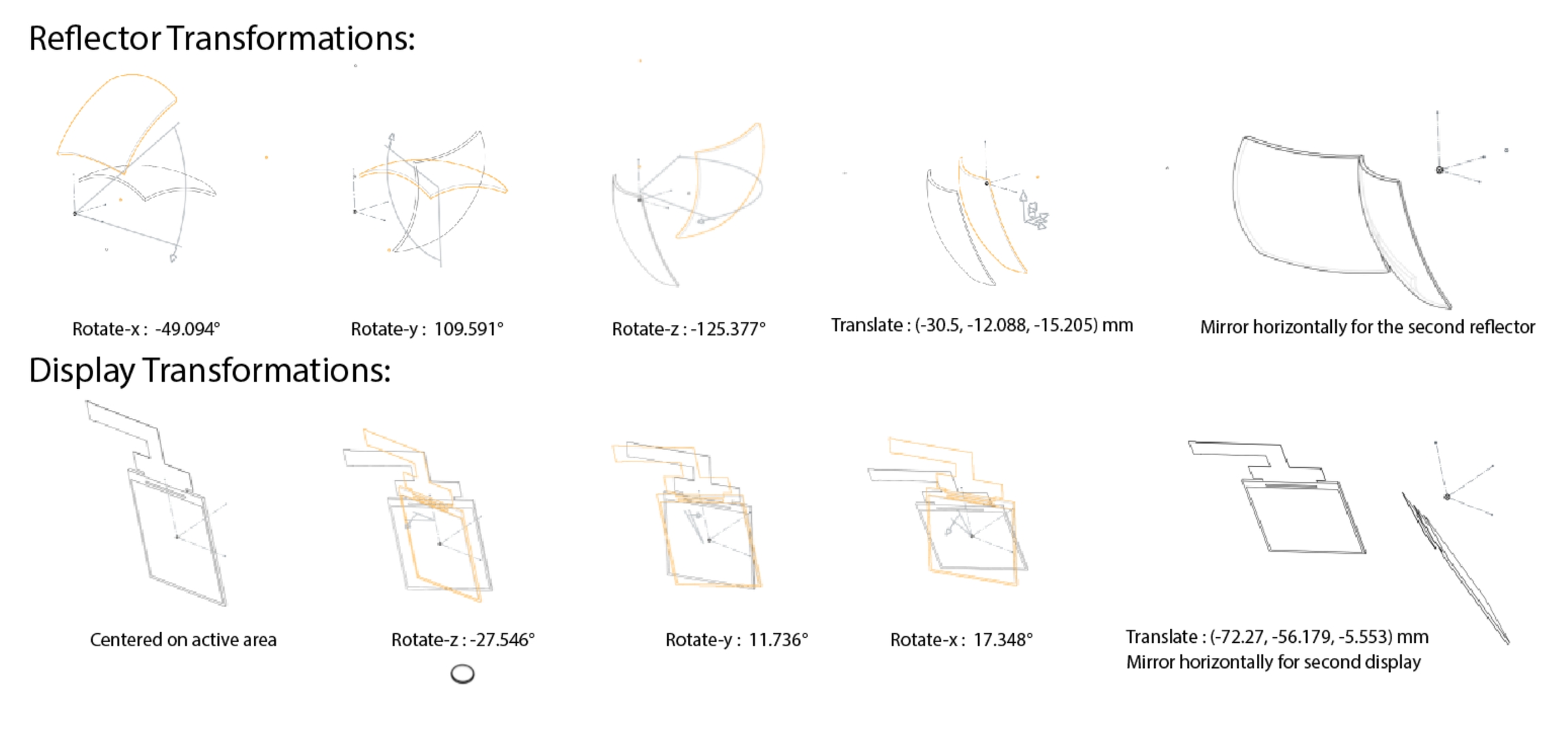

From the elipsoid definition, the reflectors need to be rotated and translated into position. We define the origin point as the midpoint between the two reflector foci, which should line up with the user's pupils:

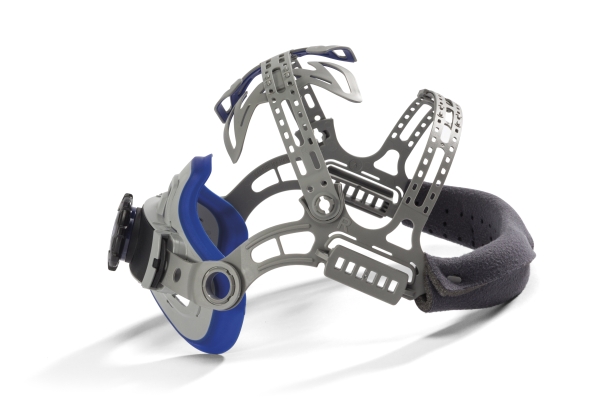

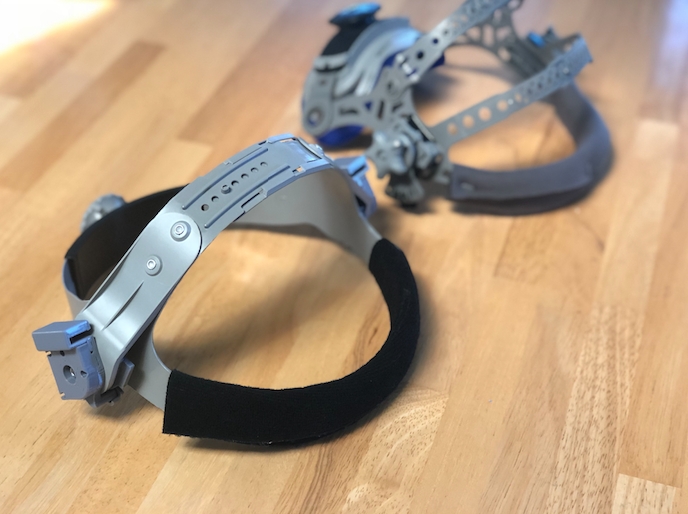

Light and adjustable with rigid mount points. Several welder's mask headgear vendors were tested, but most failed to be rigid or comfortable for our applications. Their general design is made of injection-molded plastic features that tighten onto either side of a welding faceshield. Although it may be desireable for those features to be flexible and compliant for welding, our heavier AR assemblies caused the headgear to flex and/or dig into the users' head. Ouch. The following Miller branded model's had very little flex and generally comfortable. It really helps they're lightweight as well.

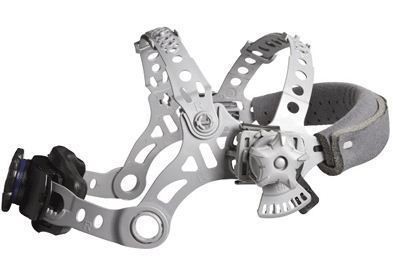

These two specific generations of headgears yielded the best results quickly, mounting evolving electronics on the most varied heads. The amount of adjustment points makes it work for the large majority of users.

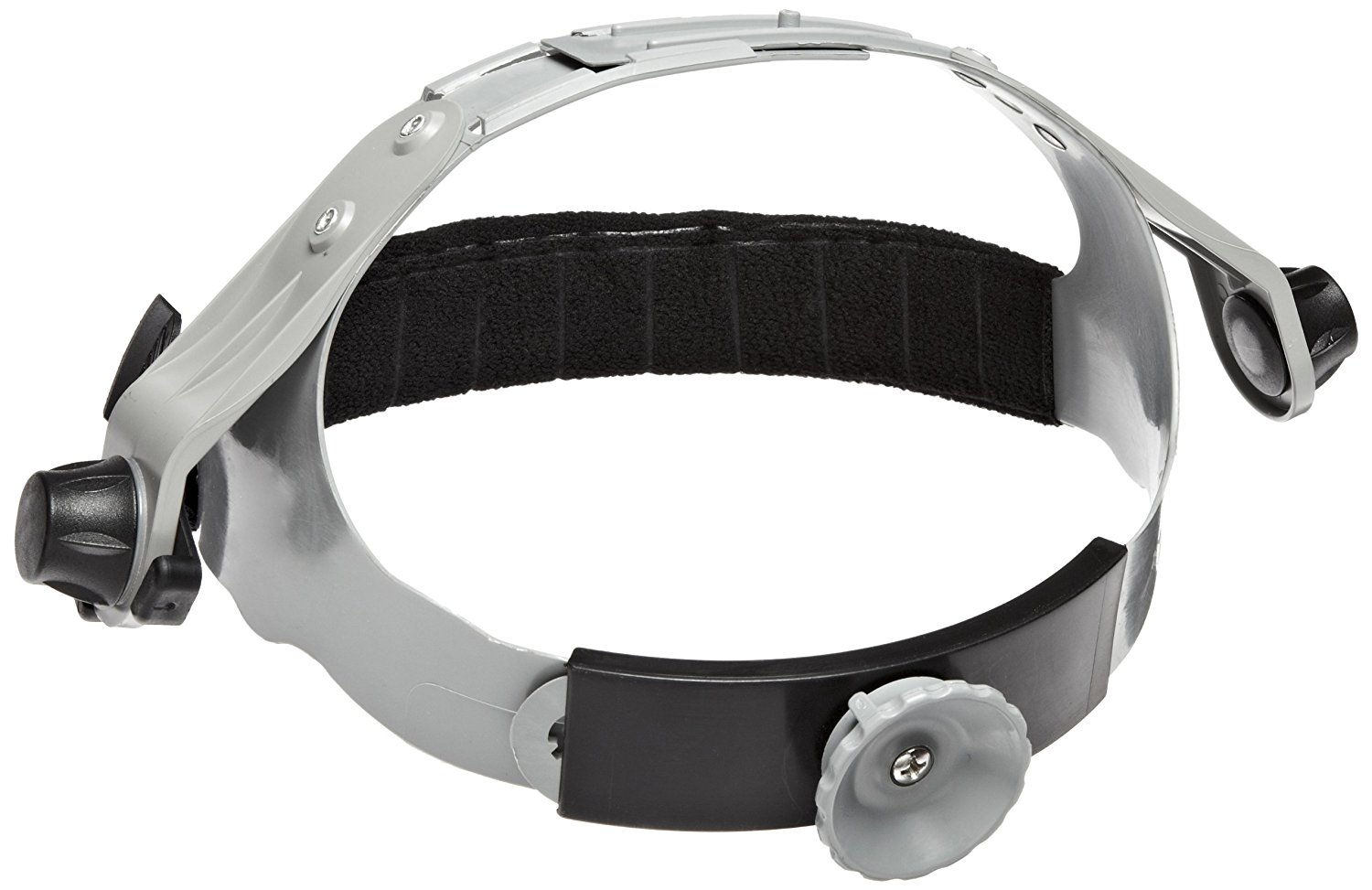

The 3M Speedglas Utility headgear was the first headgear we used for North Star prototypes. At the time, the optics would bounce around, causing the reflected image to shake wildly as we moved around. We minimized this by switching to the stiffer Miller headgear and continued other improvements for several months. However, the 3M headgear was sorely missed, as it was simple to put-on and less intimidating for demos. Since then we added cheek alignment features, which solved the image bounce, and therefore makes sense to bring back this design as a supplement to the release headgear. The headgear and optics are interchangeable, only the hinges need to match the headgear.
Welding Replacement Headgear - 3M Speedglas Welding Helmet Headband, Amazon

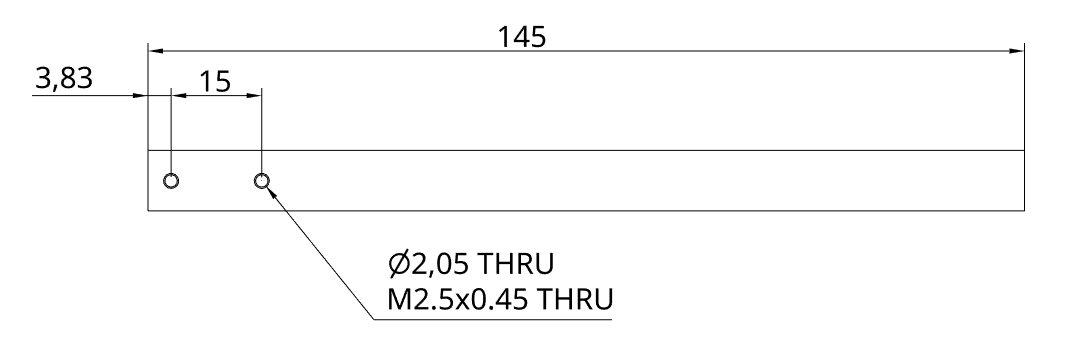

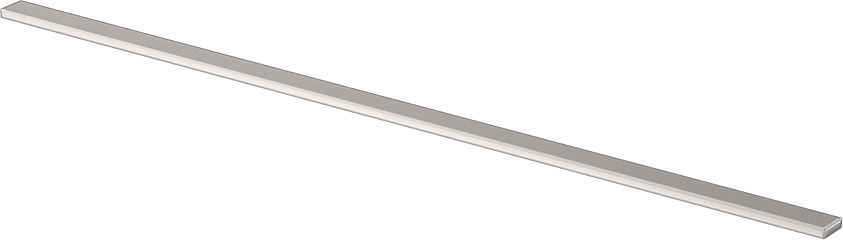

Cut, drill, and tap the slides to roughly 150mm (6 inches) in length. We used a Dremel rotary tool to cut the bar stock to length, and transferred the hole pattern from the Halo 3D print using a transfer punch. The two holes are tapped using M2.5 x 0.45 mm Thread Tap, McMaster
Cost and speed being the most important design parameters, this DIY method performs as well as a machined part at 100x lower price. Without access to a CNC metal workshop it's surprisingly expensive to have 1-2 parts machined.
Each component has suggested orientation and print settings for the best performance and least print time. Proceed to the 3D print section for information on each print: 3D Printing Part Reference

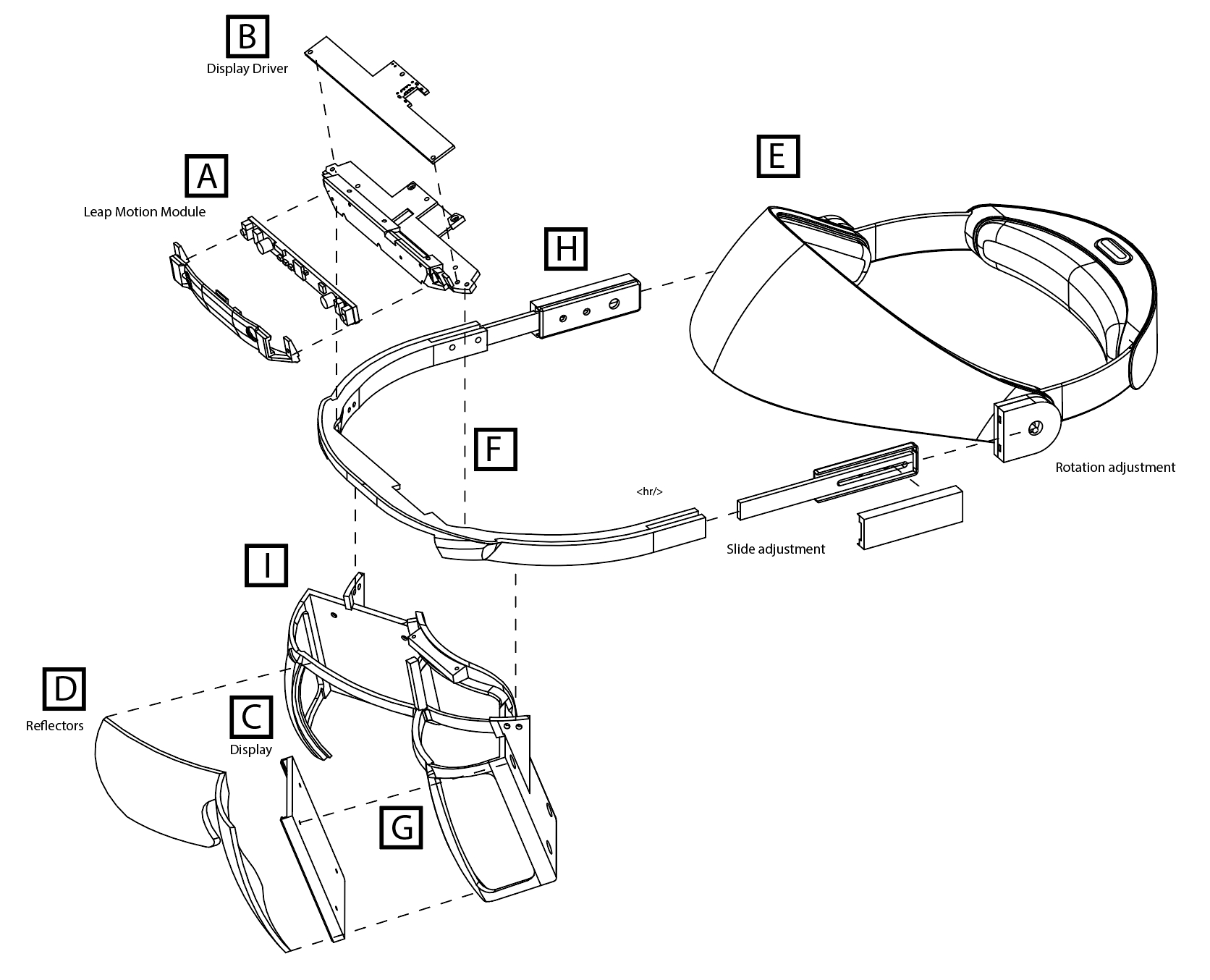

The NorthStar headset has three main sub-assemblies: the optics bracket, the electronics tray, and the adjustable headgear.
(see below for alternate headgear with torsion hinge)
1) Verify the aluminum bar stock slides without resistance inside the 3D printed hinges. Tip: Repeatedly sliding the bar stock quickly through a new hinge clears out any obtrusive burs, and the heat generated shapes the plastic.
2) Disassemble old hinges from headgear, set aside the o-rings:
3) Assemble new hinge as shown below, using screw/nut
H. Tighten until the o-ring is still visible and the hinge has considerable resistance turning.
4) Slide hinge onto headgear, aligning with front of track. Lock in place using screw

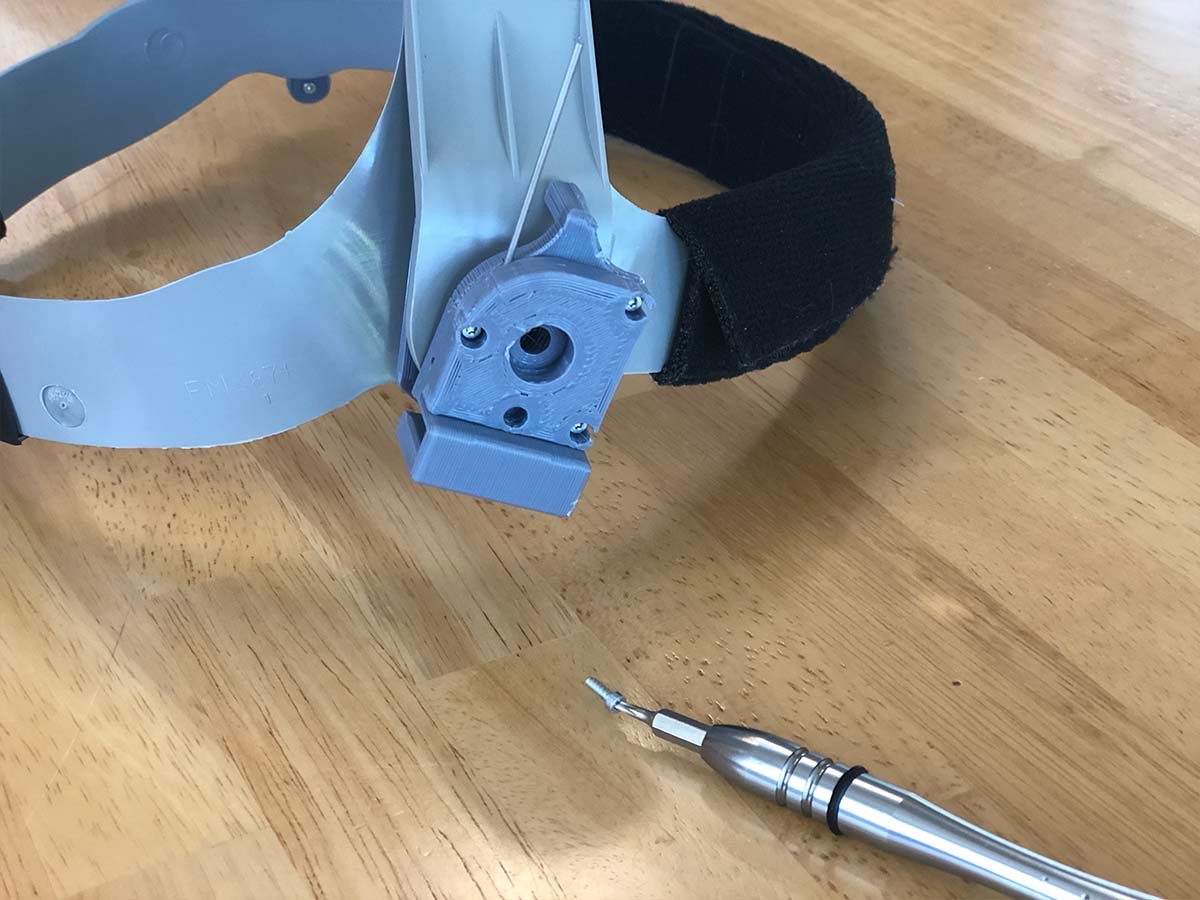

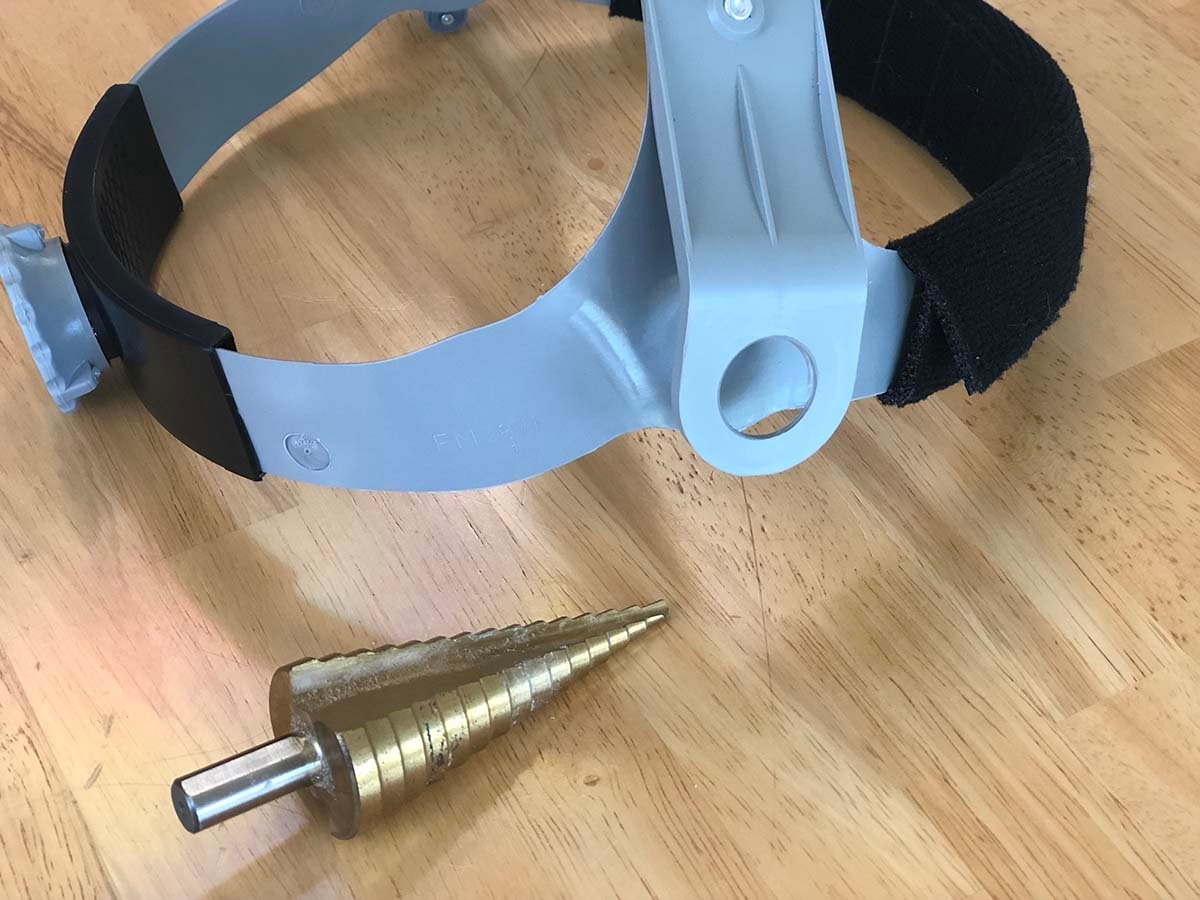

1) Remove the mounting assemblies on both sides of the headgear, enlarge hole to 18mm. We used a stepped drill to enlarge the hole, a little larger than the diameter of the spring we’re using.

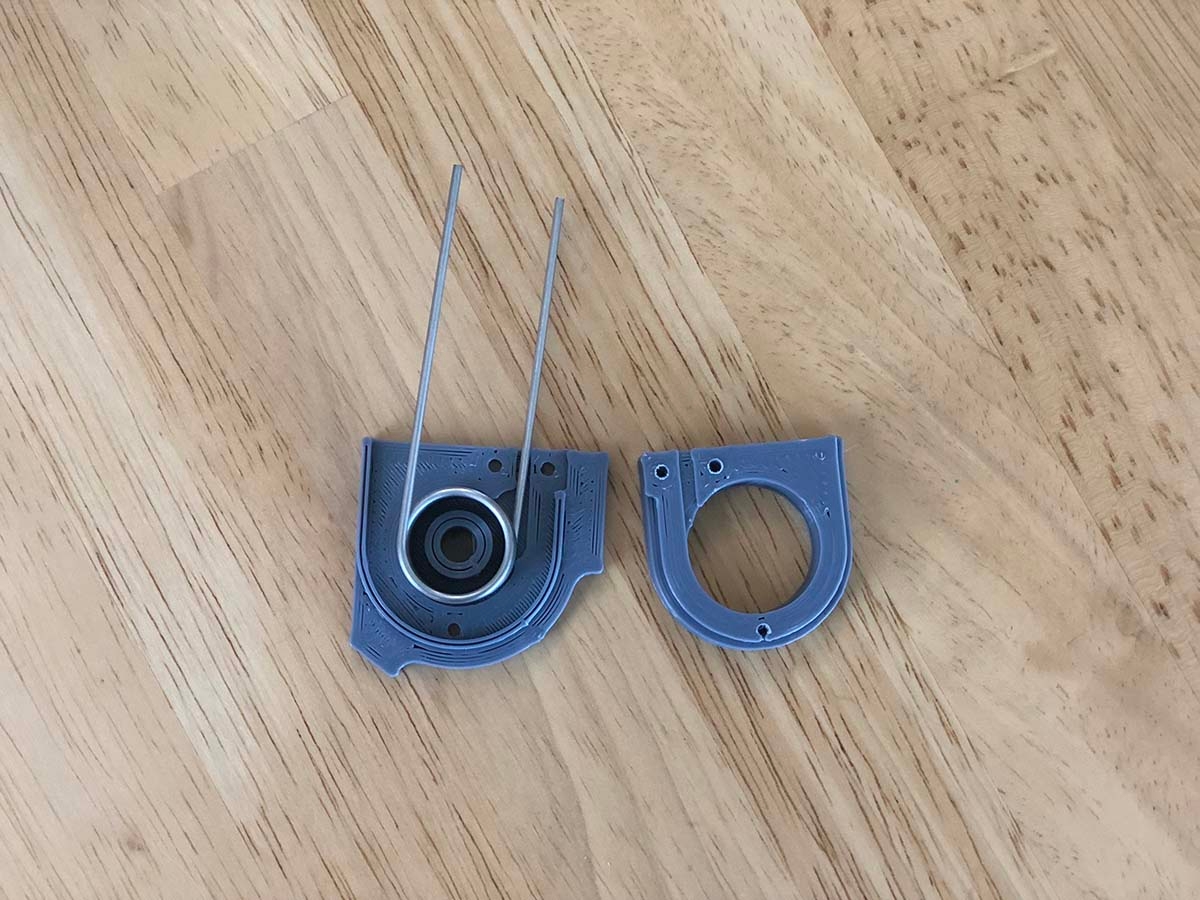

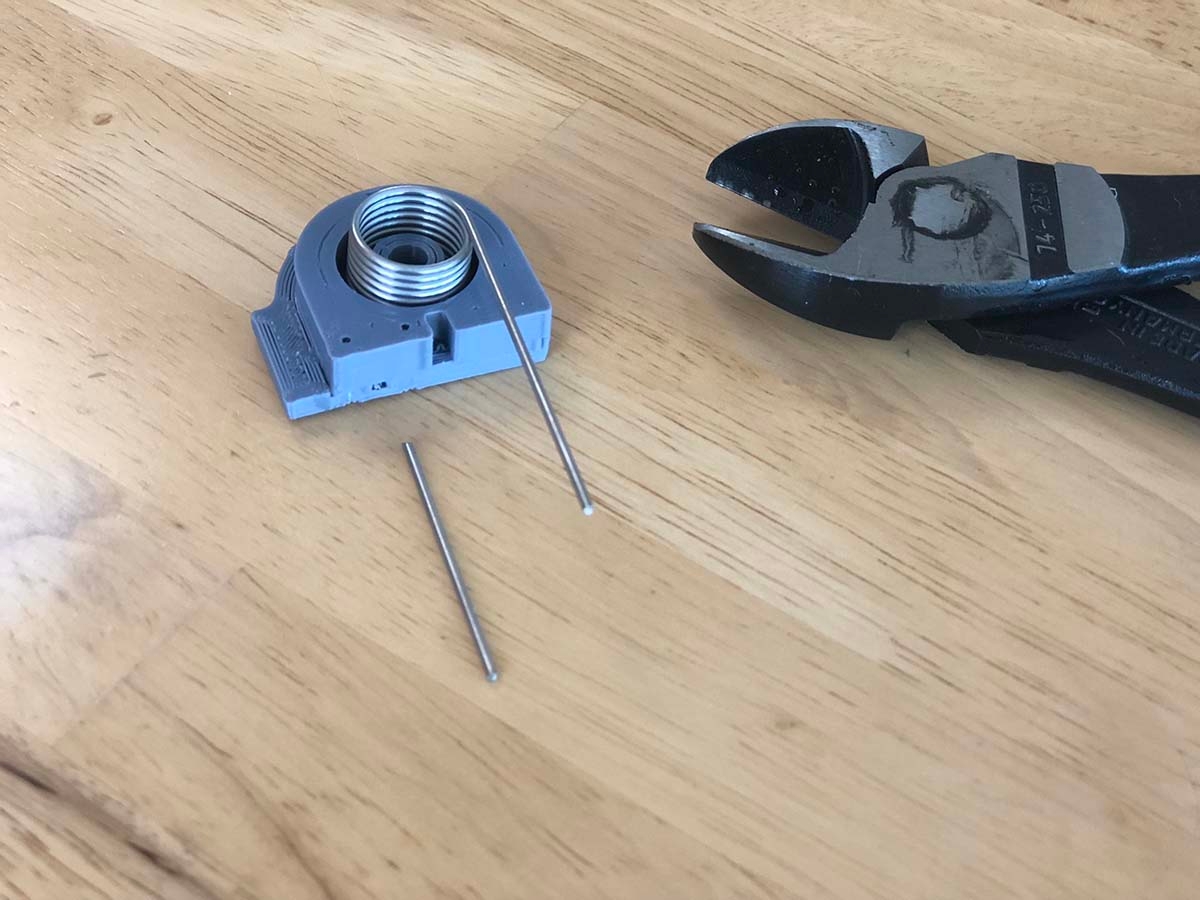

2) Place matching spring into rear housing, fasten close, and trim spring legs.

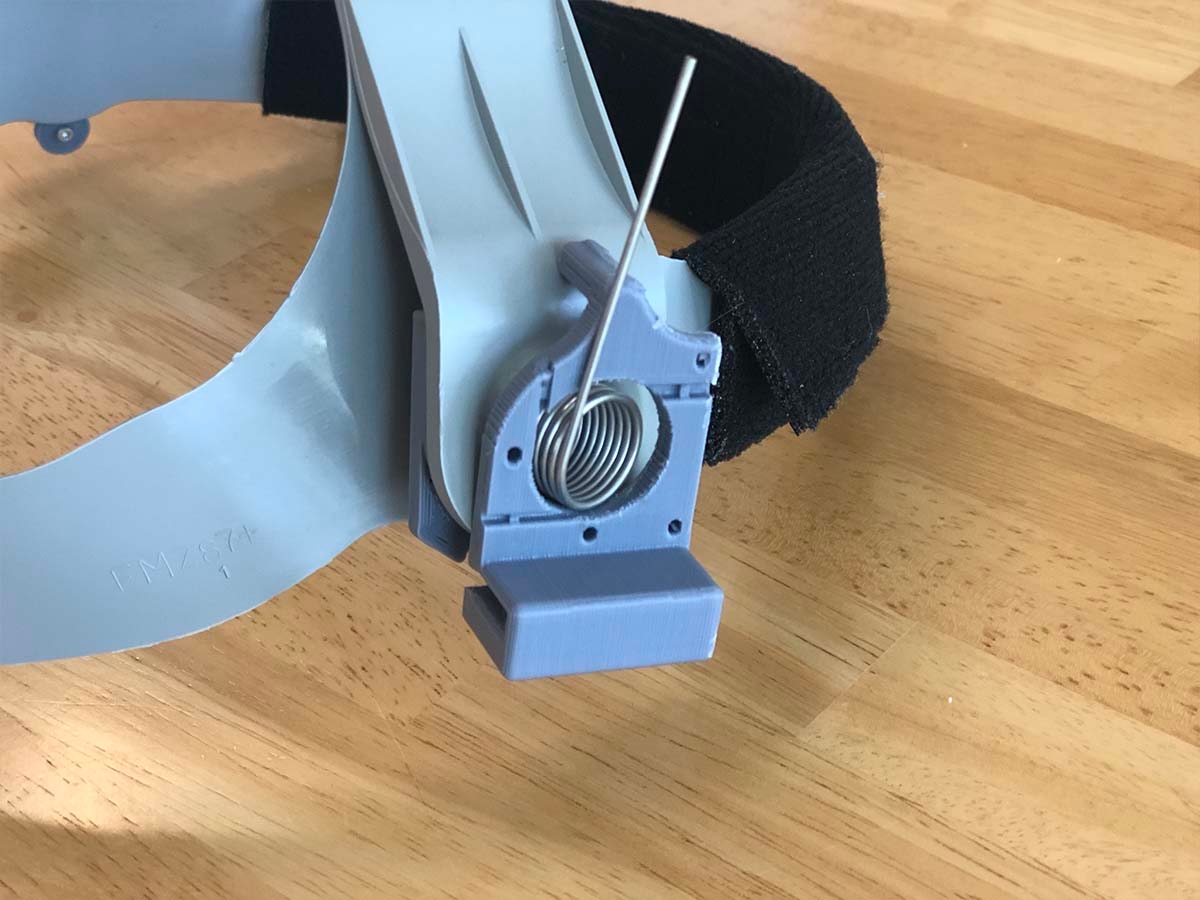

3) Place the outer hinge housing onto the spring, in the orientation shown. Using the perimeter fasteners, clamp down onto the spring leg, aligning it with the cutout.

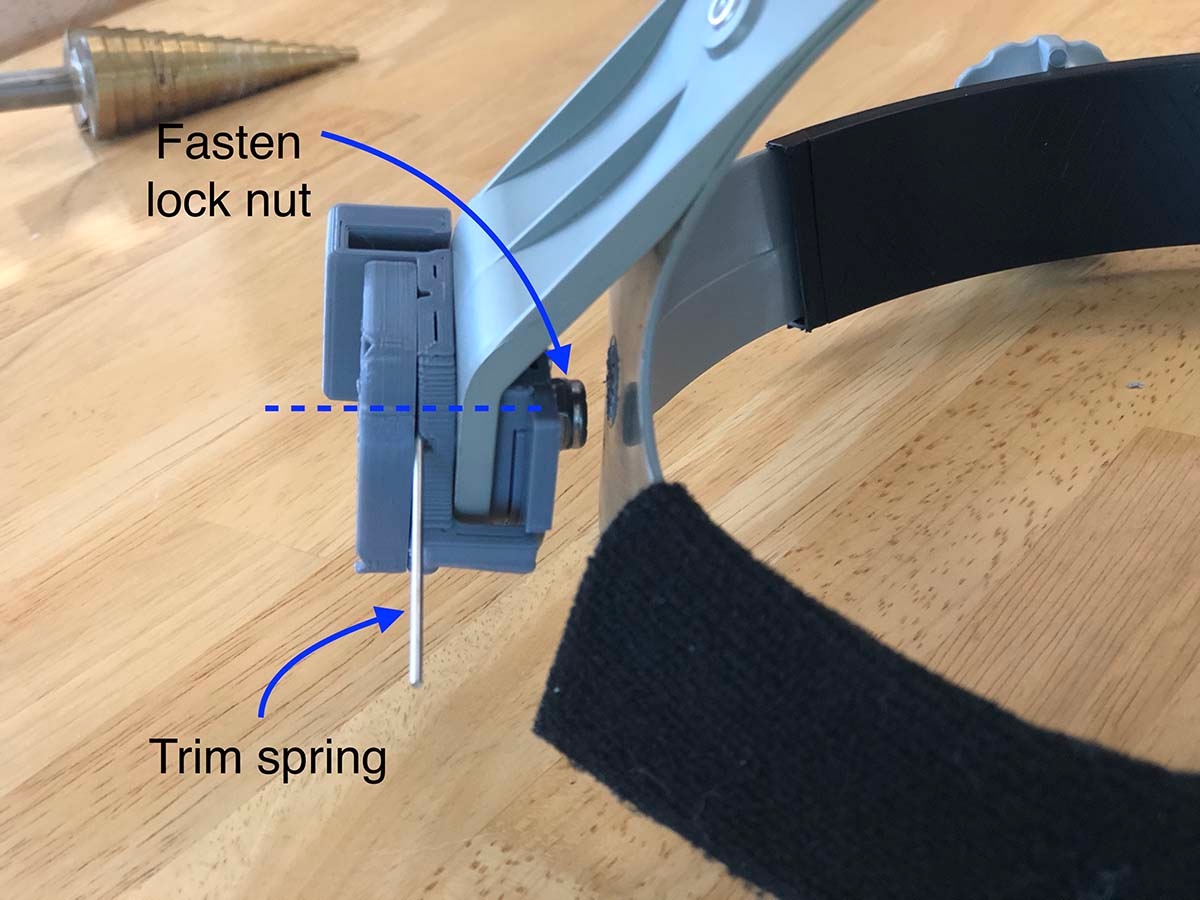

4) Fasten the large center locknut and screw, adjusting it for the desired resistance. Trim the remaining spring leg.
5) Fasten display driver
B to 3D printed bracket using
F screws x 3. Fasten hand tracking module
A to 3D print using screws from its enclosure
6) Place USB cable into USB strain relief, and fasten using
F screws x 2 to electronics tray
7) Adjust USB cable until the flex connector is aligned with connector and doesn't strain
8) Fasten electronics tray to halo using 2 screws
9) Fasten optics bracket to the halo using 6 screws

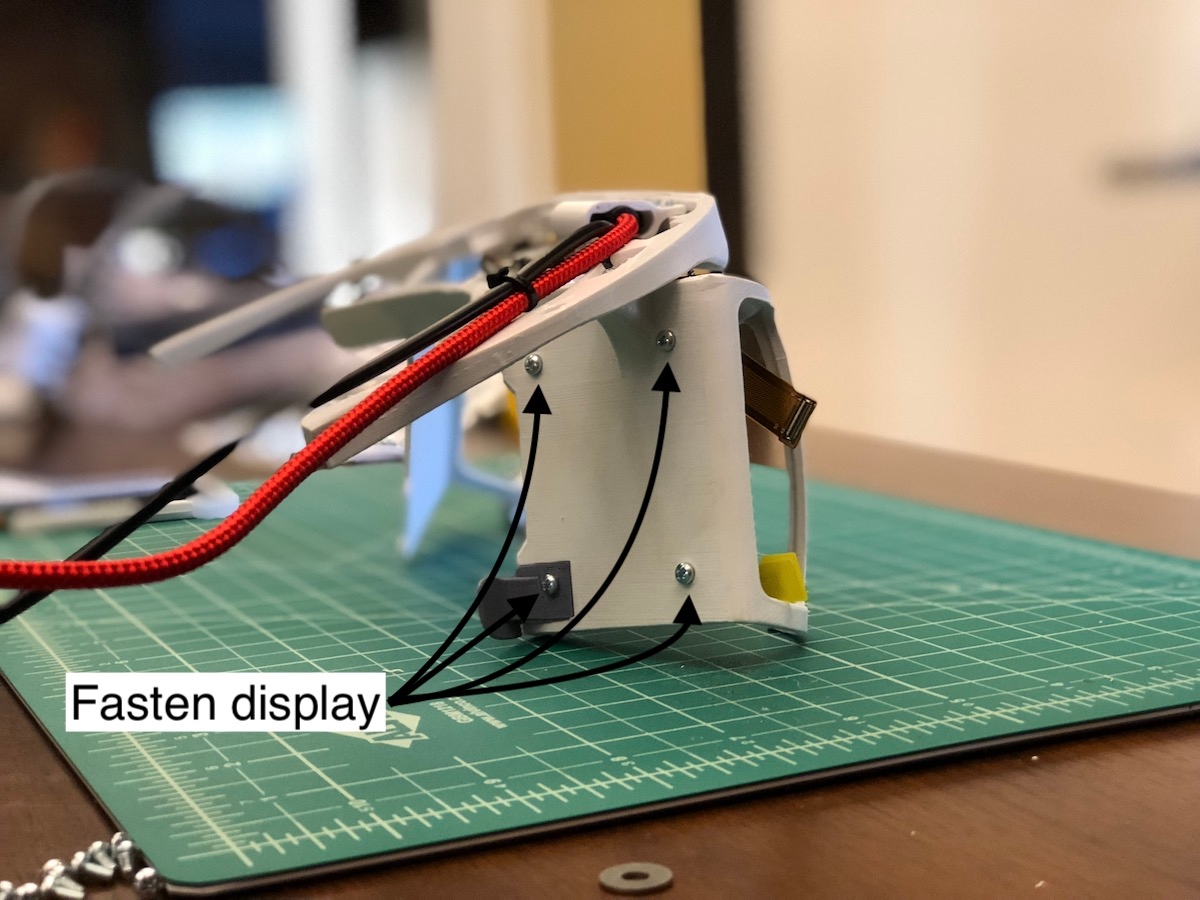

10) Fasten displays and facial interfaces into optics bracket using 4 screws per side
G (8 total).
11) Carefully connect the display flex connector to the driver board
12) Fasten lid to halo using 4 screws
F from the bottom as shown
13) Secure wires to lid using cable-ties through the anchors

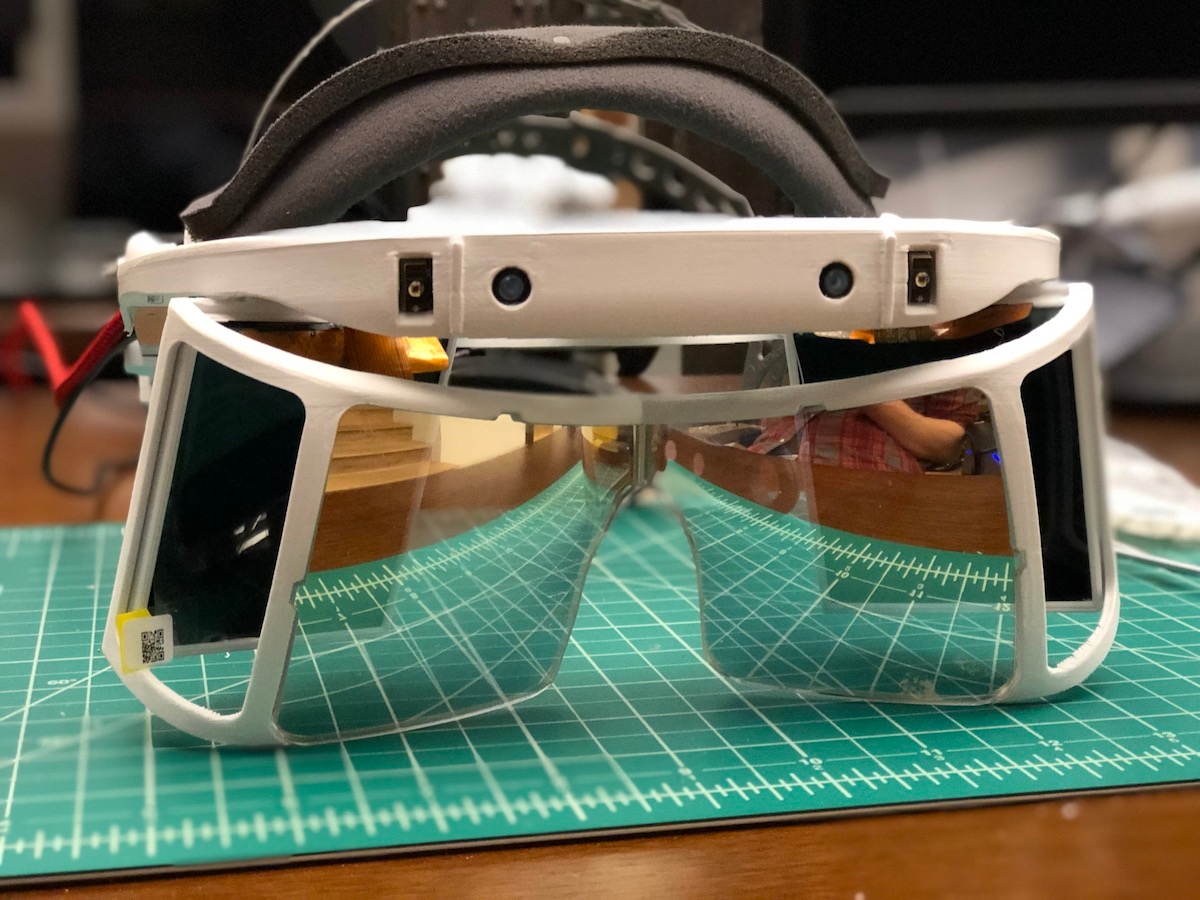

14) Verify reflectors align with tabs in optics bracket, scrape away offending plastic if not. Using hot-glue, "tack" the reflectors into the halo bracket. Be careful not to use too much and be quick enough that the glue doesn't solidify before the reflectors are in place.
15) Fasten slides to assembled optics bracket using 4 x
16) Make adjustments for user's head.
